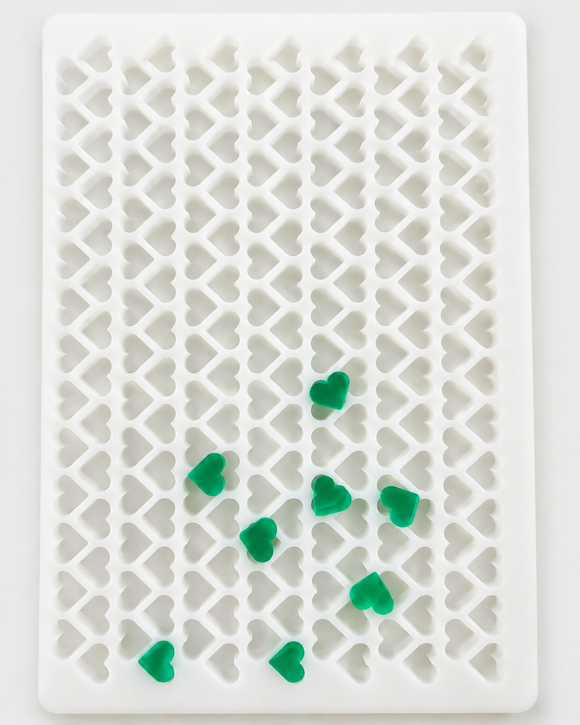

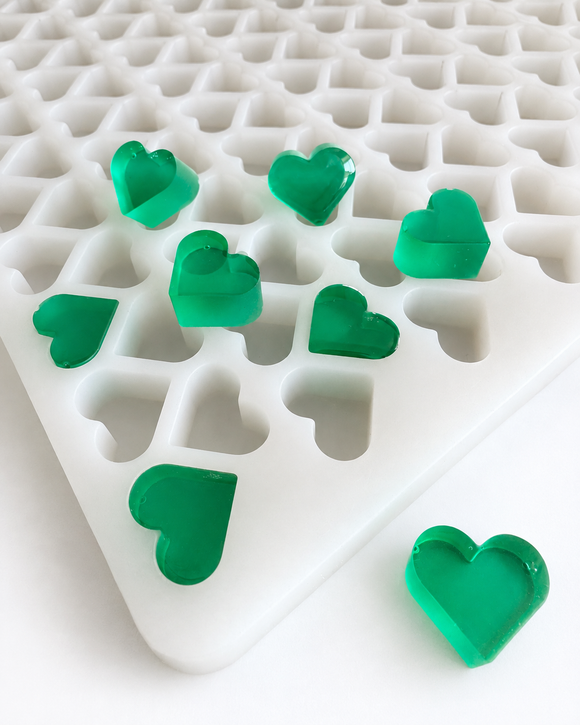

2.76mL heart · 196 cavities
Commercial heart mold for repeatable production
Produce up to 196 pieces per cycle with this nonstandard sheet silicone mold designed for gummy, supplement, candy, chocolate, and product-development workflows.
- Cavity volume
- 2.76mL
- Cavities
- 196
- Total capacity
- 540.96mL
- Availability
- Skladem
Product specifications
- Shape
- Heart
- Cavity volume
- Approximately 2.76mL per cavity
- Cavity count
- 196
- Cavity dimensions
- 21.1 × 18.1 × 11 mm
- Cavity layout
- 14 × 14
- Nominal total capacity
- Approximately 540.96mL
- Sheet format
- Nonstandard Sheet
- Material
- Silicone
- Maximum temperature
- 400°F
View all specifications
- Dishwasher safe
- Yes
- Production methods
- Hand filling, Pour-and-scrape production, Compatible depositing systems
- SKU
- GM-2P76-HEART-196-1
Filling and production methods
- Hand filling Ideal for test batches, product development, and lower-volume production using droppers, squeeze bottles, pitchers, or similar tools.
- Pour-and-scrape production Fill multiple cavities efficiently by pouring the mixture across the mold and scraping the excess into the cavities.
- Compatible depositing systems Compatible with many commercial depositing setups when tray dimensions, nozzle spacing, shot volume, alignment, and clearance are confirmed. Check depositor compatibility
Cleaning and care
View mold care instructions
- Wash and inspect the mold before first use and between production cycles.
- Use sanitation procedures appropriate for your facility and formulation.
- Avoid sharp tools that could cut or damage the cavity surfaces.
- Allow the mold to dry completely before stacking or storage.
- Store flat and protect the mold from unnecessary compression or distortion.
Frequently asked questions
How many pieces can one mold produce?
One completely filled mold can produce up to 196 heart pieces per cycle. Actual yield may be lower because of setup, filling loss, rejected pieces, and normal production variation.
Will this mold fit my commercial depositor?
Compatibility depends on your complete production setup. Compare the mold footprint, support tray, nozzle pattern, shot volume, clearance, alignment, and operating requirements before ordering.
Can I order a different size or layout?
Yes. Review the custom gummy mold options for a different cavity volume, dimensions, count, logo, texture, or production layout.
